Oakville — Driveway OSD Stormwater Detention Tank

Civil On-Site Stormwater Detention (OSD) concrete block tank constructed alongside the main driveway in Oakville, engineered to handle surge storm volumes without structural leakage.

Engineering Requirements for OSD Tanks

Council stormwater regulations require OSD retention pits to maintain complete water tightness. Water migrating through porous core-filled concrete blocks compromises the adjacent driveway pavement sub-base, leading to ground subsidence and structural failure.

Technical Application

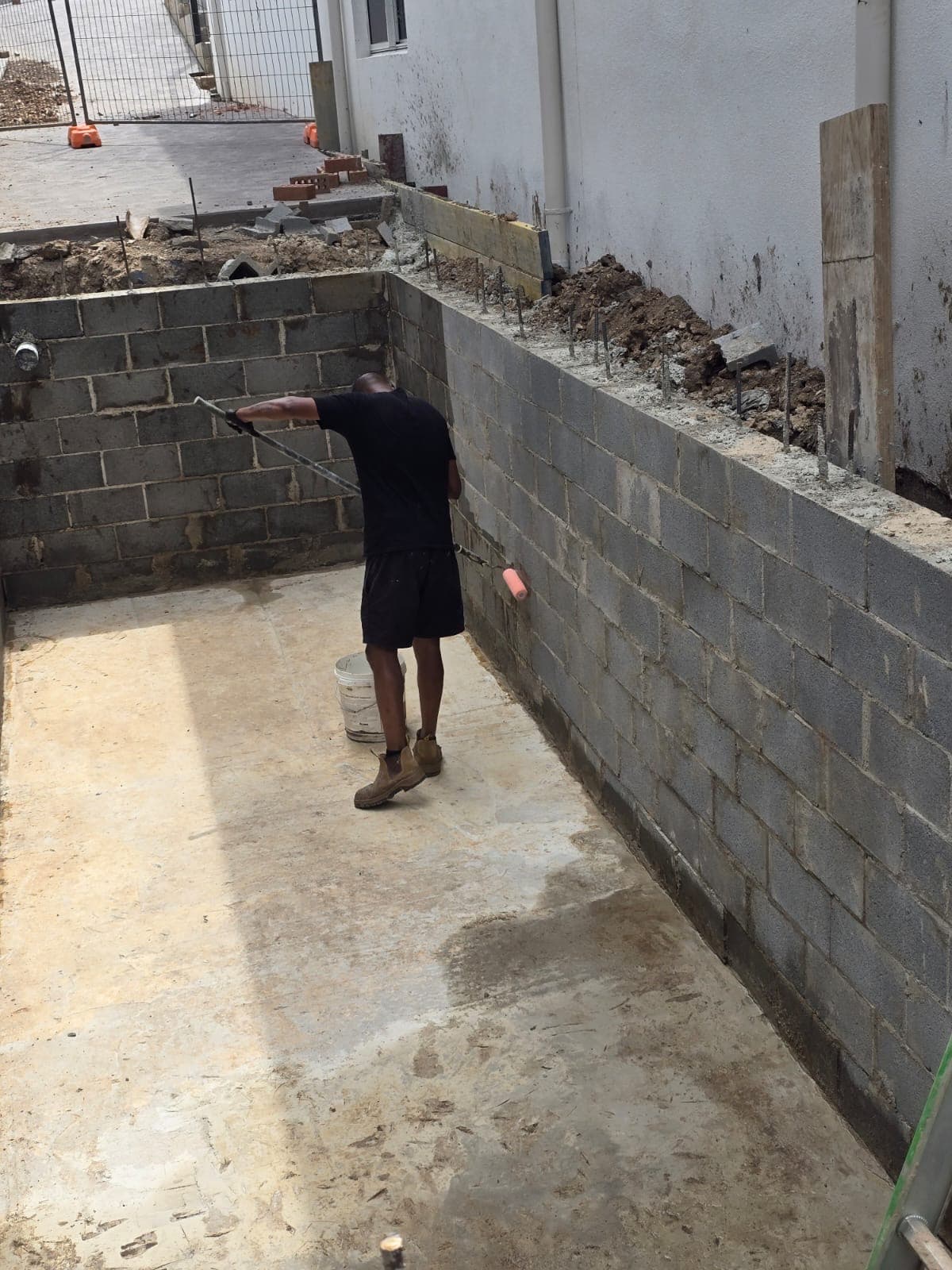

• Masonry Pore Sealing: High-solids penetrating primer applied to stabilize core-filled cinder block surfaces and mortar joints.
• Structural Rebar & Corner Reinforcement: Non-shrink hydraulic cement fillets at base corners, followed by polyester fabric-reinforced elastomeric banding.

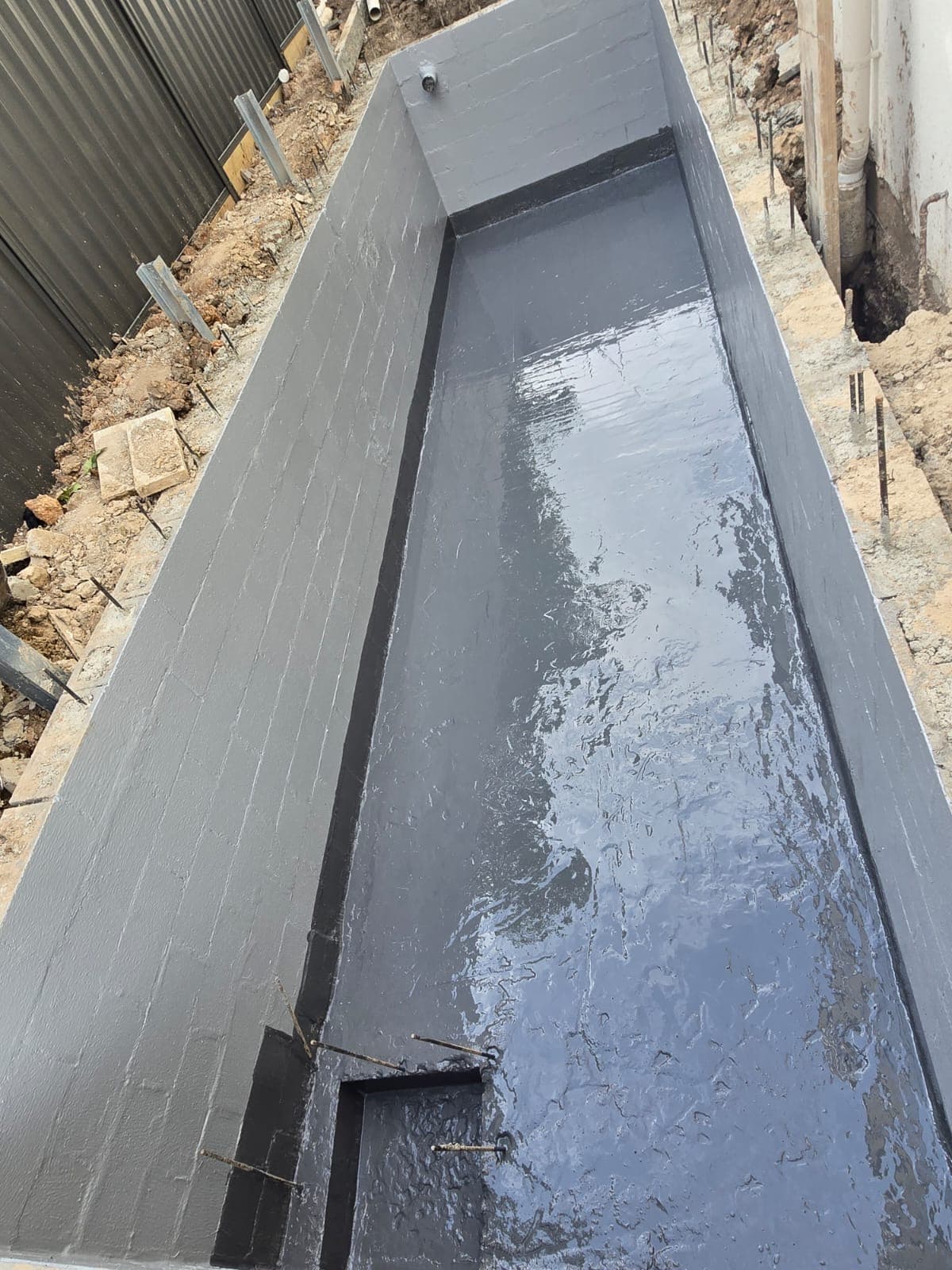

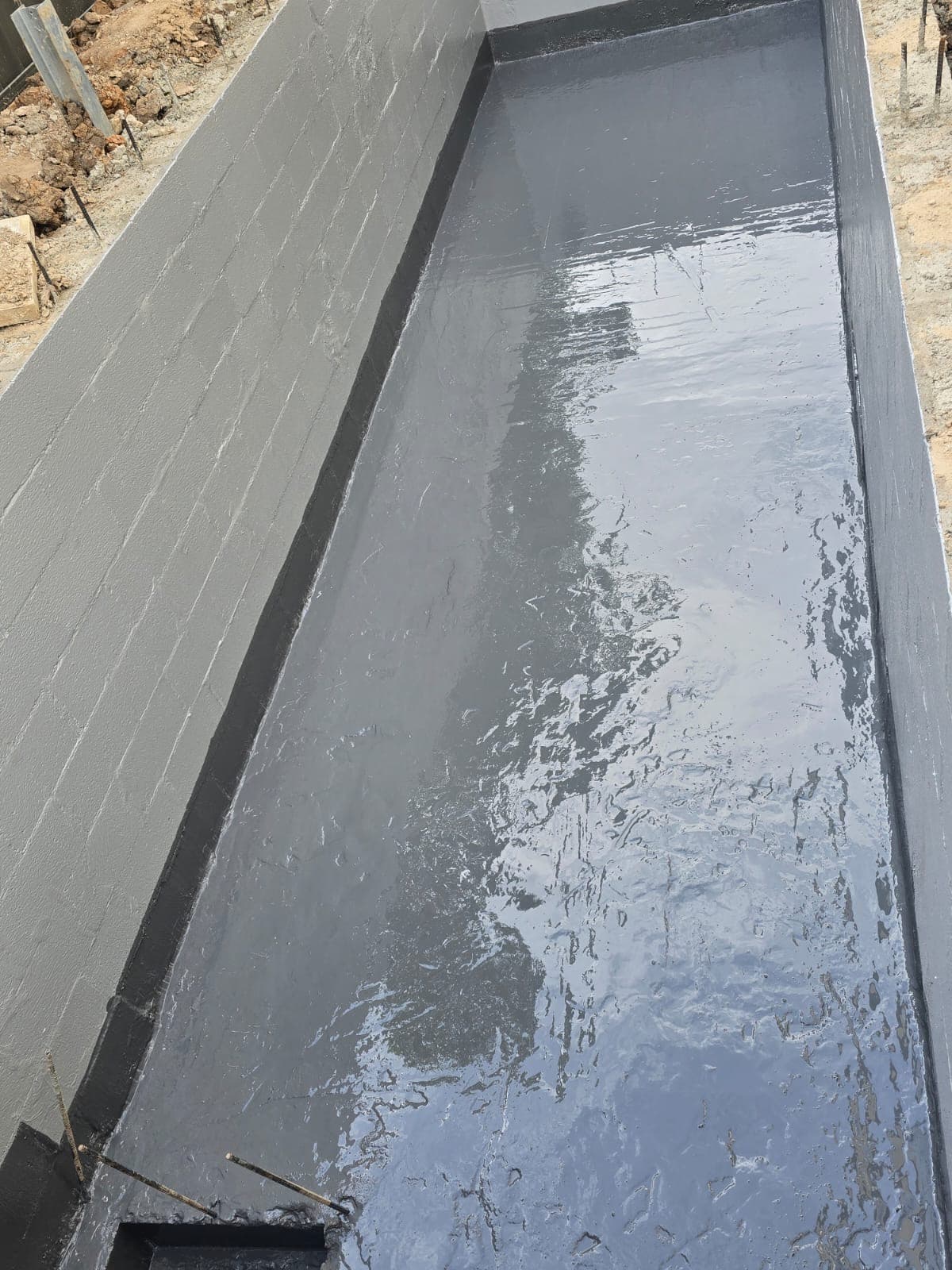

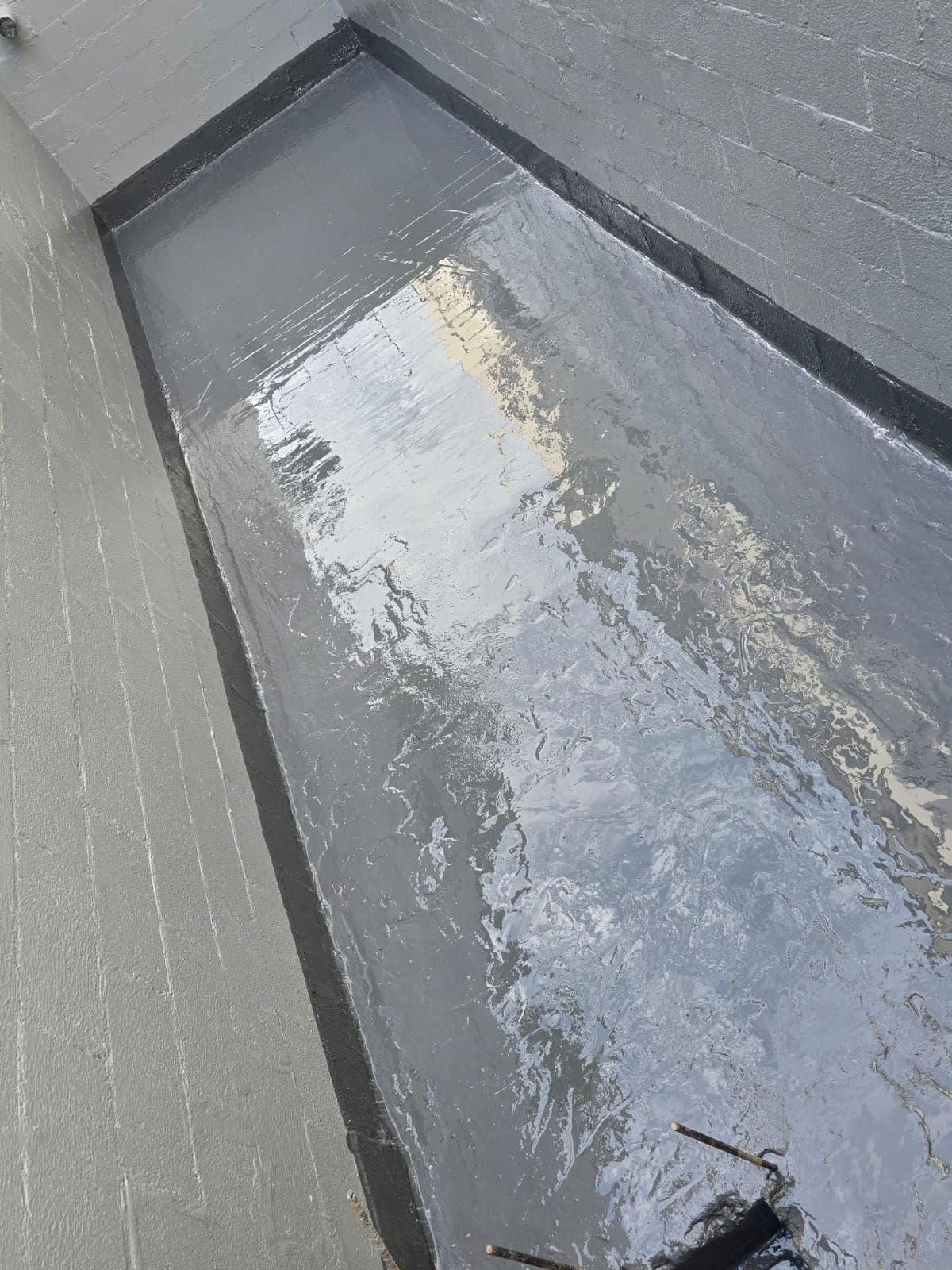

• Water-Holding Membrane: Multi-coat application of certified hydrostatic water-retaining elastomeric membrane capable of withstanding constant hydraulic head pressure.

Certification

The tank underwent flood testing and was certified compliant with local Council engineering guidelines and AS/NZS 4858 standards.
